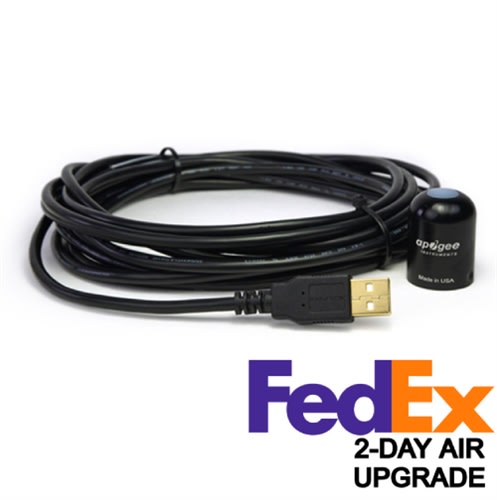

The Apogee Instruments SQ-420X Smart Quantum Sensor, USB, can be connected directly to a computer (Windows or macOS X) for taking spot measurements or graphing and datalogging real-time PPFD using the included ApogeeConnect software. The sensor can also act as a stand-alone PAR datalogger by simply connecting it to most standard 5 V DC USB power plugs. Internal memory within the sensor head is capable of storing 10,000 user-specified periodic measurements that can be downloaded as a CSV file to a computer for analysis.
Features:- Product Manual (pdf in new window)
- Resolution - 0.1 µmol m-2 s-1
- Calibration Factor - custom for each sensor and stored in the firmware
- Measurement Repeatability - less than 1 %
- Field of View - 180°
- Spectral Range - 410 nm to 655 nm (wavelengths where the response is greater than 50% of the maximum; see Spectral Response Graph in Images)
- Dimensions - 2.4 cm X 2.8 cm high
- USB Cable - 4.6 m (15 ft)
- Current Draw (when Logging) - 5.1 mA
- Warrantied for 4 years against defects in materials and workmanship
